最初にmapboxのサイトでアカウントを作成しログイン

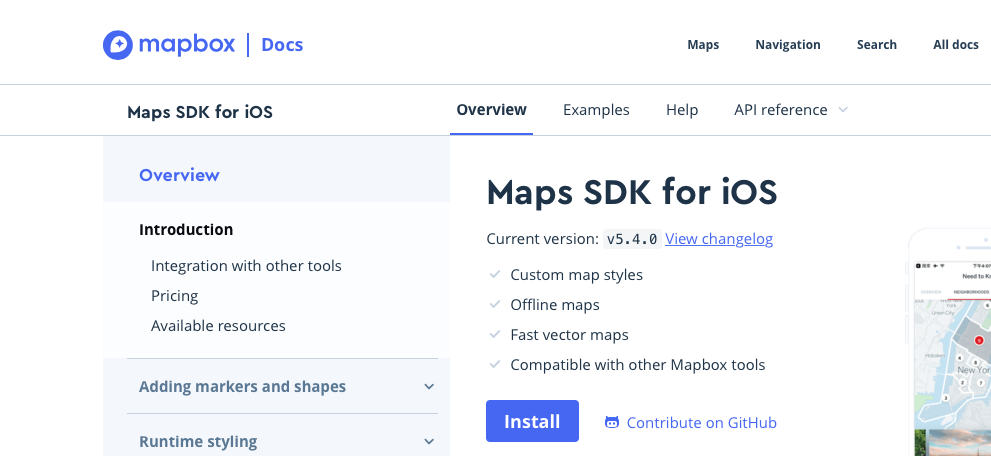

MapBox SDKのページを開く

https://docs.mapbox.com/ios/maps/overview/

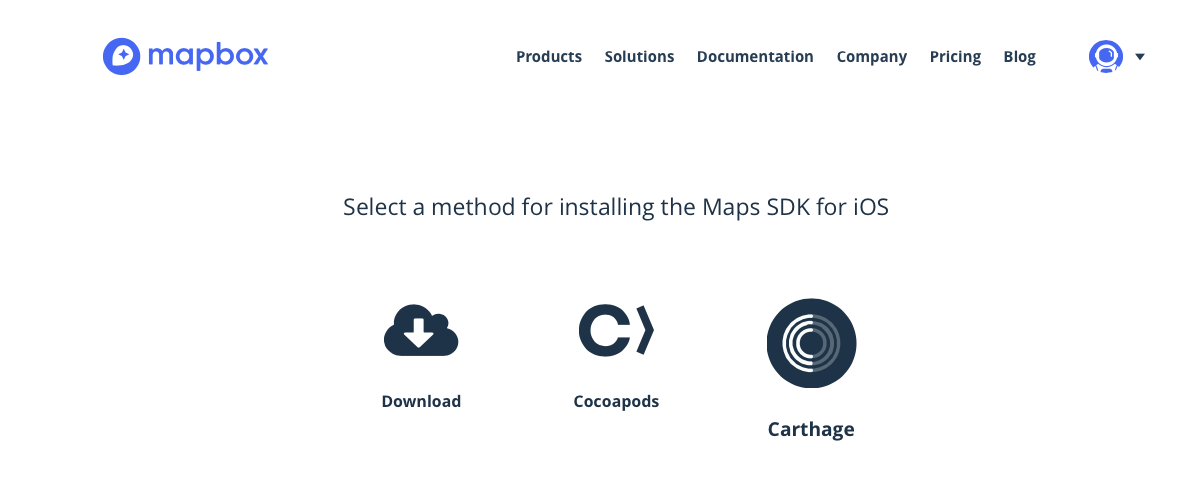

インストールボタンをクリック

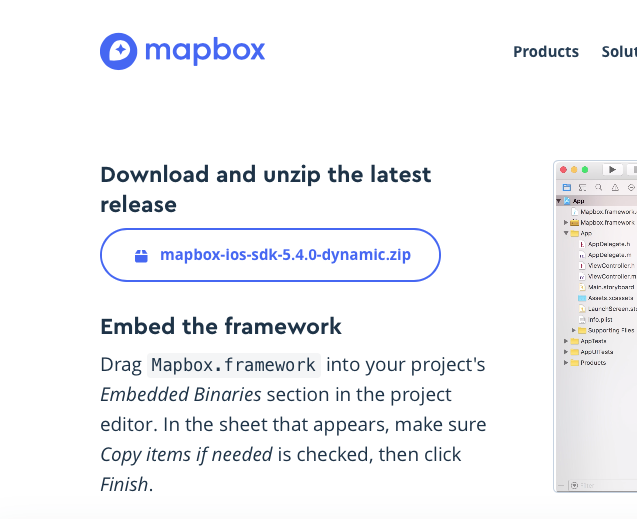

ダウンロードボタンをクリック

mapbox-ios-sdk-5.4.0-dynamic.zipをダウンロード

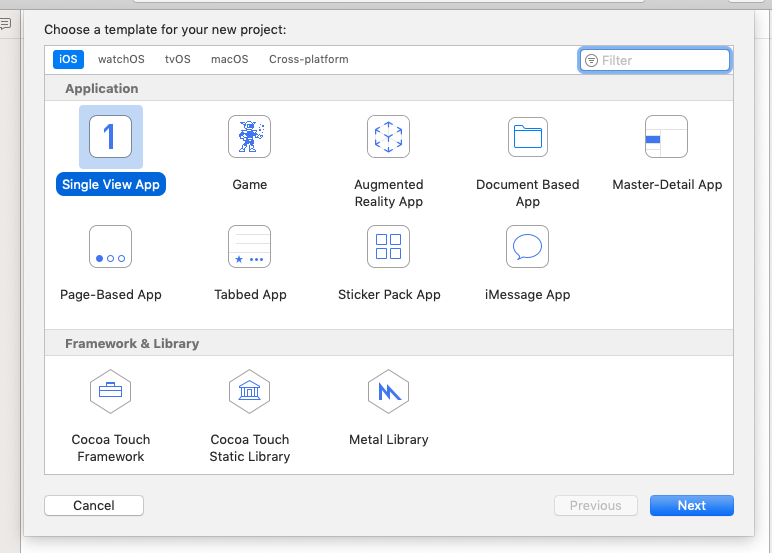

XCODEを起動してSingle View Appのプロジェクトを作成

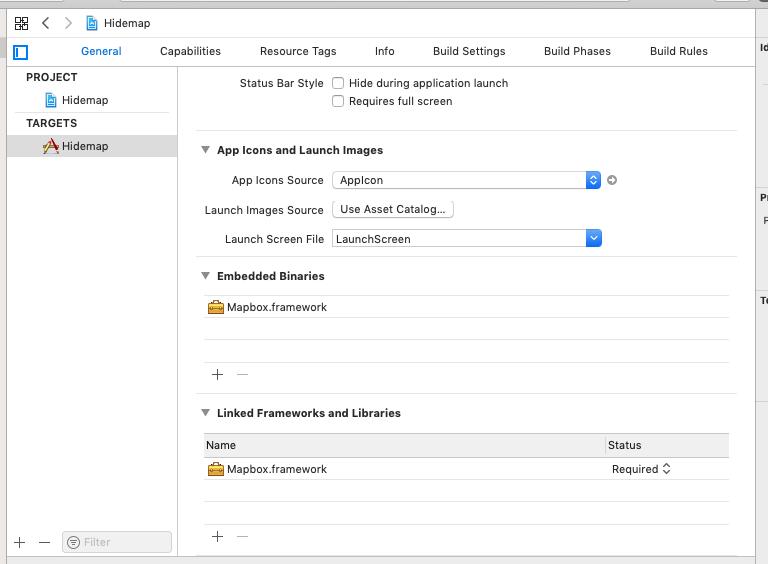

ダウンロードしたmapbox-ios-sdk-5.4.0-dynamic.zipを展開し中のMapbox.frameworkをEmbedded Binariesにドラッグして参照を追加

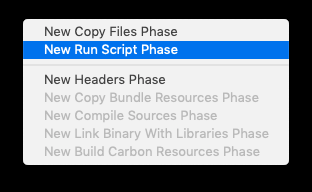

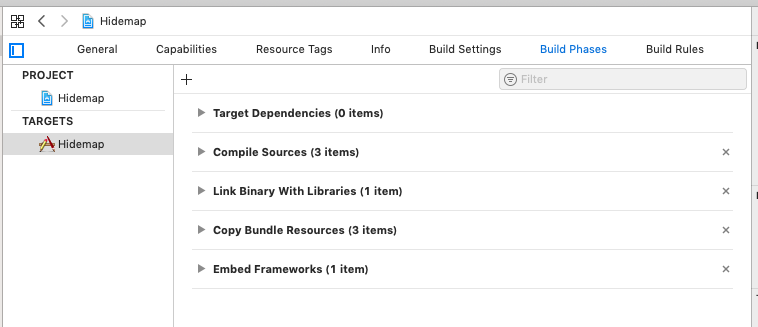

TARGETSのBuild Phases画面を開き、＋（追加）ボタンを押す

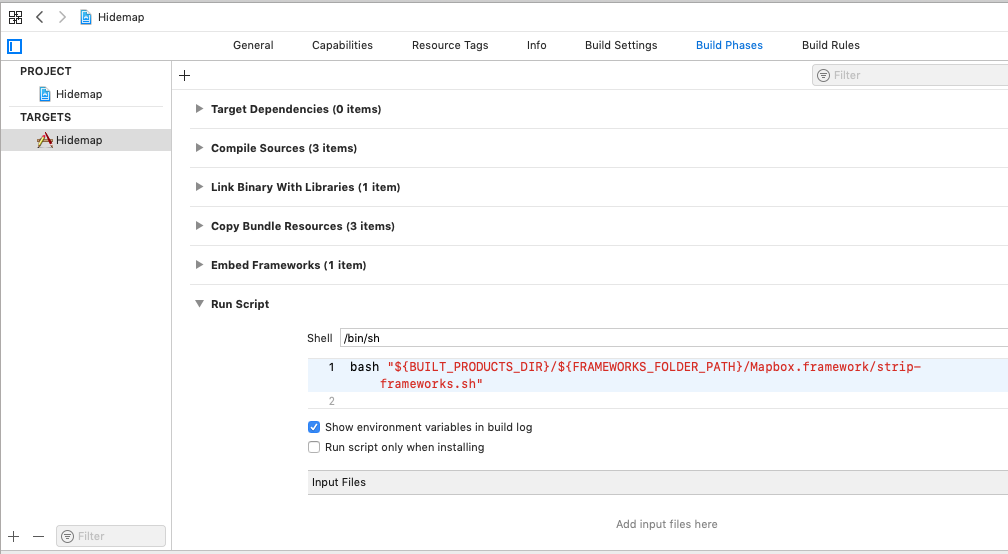

Run Scriptを追加しMapboxのサイトに従い設定

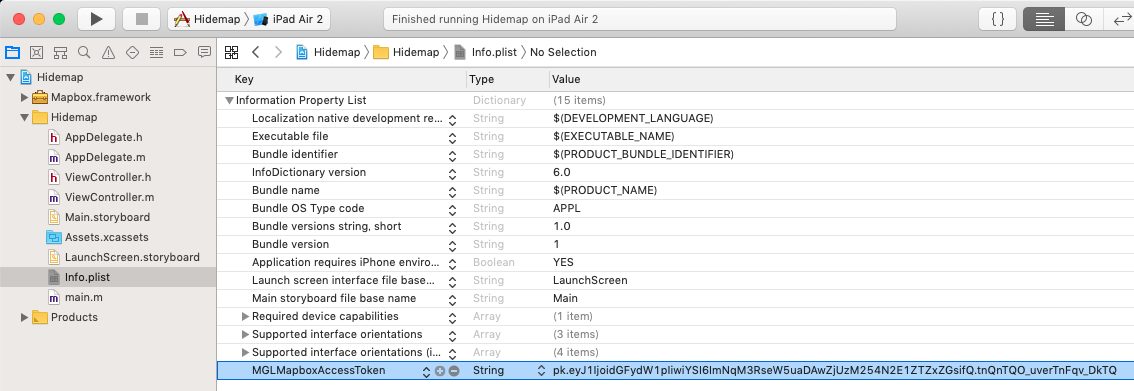

info.listにMGLMapboxAccessTokenを追加しキーを入力

ViewController.mを編集

[code]
#import "ViewController.h"
@import Mapbox;

@interface ViewController () <MGLMapViewDelegate>
@property (nonatomic) MGLMapView *mapView;
@end
[/code]

地図を表示

ViewControllerのviewDidLoadを以下に従って編集

[code]
– (void)viewDidLoad {
[super viewDidLoad];
NSURL *url = [NSURL URLWithString:@"mapbox://styles/mapbox/streets-v11"];
self.mapView = [[MGLMapView alloc] initWithFrame:self.view.bounds styleURL:url];
self.mapView.autoresizingMask = UIViewAutoresizingFlexibleWidth | UIViewAutoresizingFlexibleHeight;
[self.mapView setCenterCoordinate:CLLocationCoordinate2DMake(35.73353,139.712118)
zoomLevel:12
animated:NO];
self.mapView.delegate = self;
[self.view addSubview:self.mapView];

[[NSNotificationCenter defaultCenter] addObserver:self selector:@selector(offlinePackProgressDidChange:) name:MGLOfflinePackProgressChangedNotification object:nil];
[[NSNotificationCenter defaultCenter] addObserver:self selector:@selector(offlinePackDidReceiveError:) name:MGLOfflinePackErrorNotification object:nil];
[[NSNotificationCenter defaultCenter] addObserver:self selector:@selector(offlinePackDidReceiveMaximumAllowedMapboxTiles:) name:MGLOfflinePackMaximumMapboxTilesReachedNotification object:nil];
}
[/code]

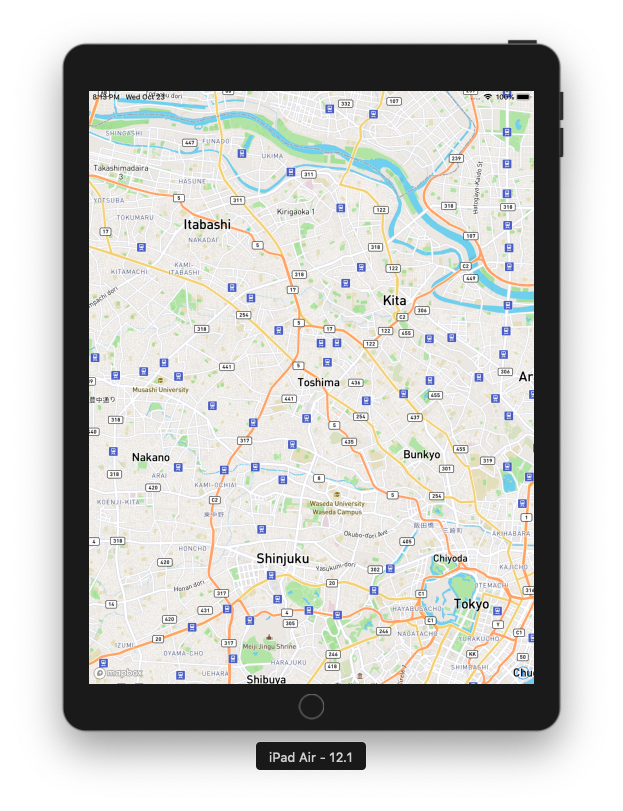

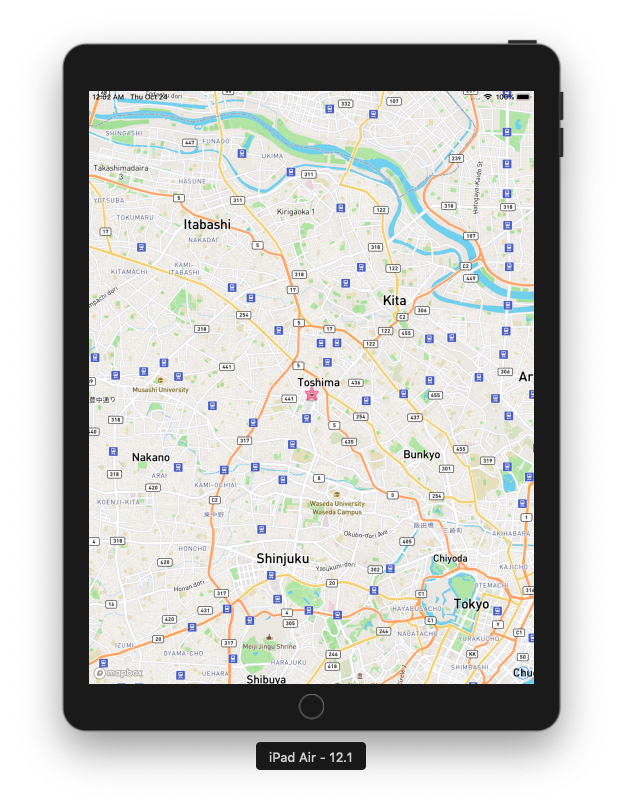

池袋を中心に地図を表示

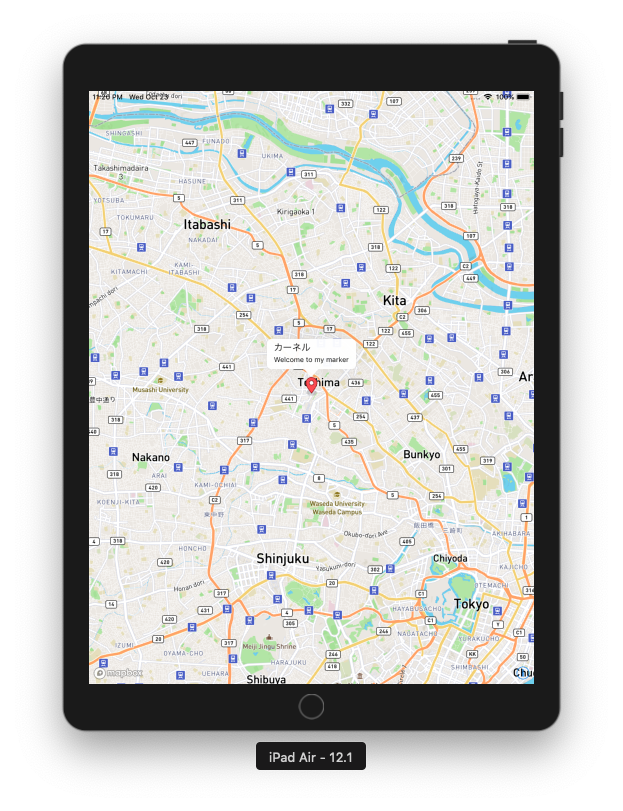

デフォルトのAnnotationを表示

[code]
– (void)mapViewDidFinishLoadingMap:(MGLMapView *)mapView {
MGLPointAnnotation *hello = [[MGLPointAnnotation alloc] init];
hello.coordinate = CLLocationCoordinate2DMake(35.73353,139.712118);
hello.title = @"カーネル";
hello.subtitle = @"Welcome to my marker";
[mapView addAnnotation:hello];
}

– (MGLAnnotationImage *)mapView:(MGLMapView *)mapView viewForAnnotation:(id <MGLAnnotation>)annotation {
return nil;
}

– (BOOL)mapView:(MGLMapView *)mapView annotationCanShowCallout:(id <MGLAnnotation>)annotation {
return NO;
}
[/code]

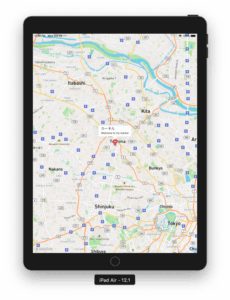

関数：annotationCanShowCalloutの戻り値にYESを返すとAnnotationをクリックするとTooltipを表示する

デフォルトのAnnotationではなくMGLAnnotationViewを使ってカスタムAnnotationを表示

viewForAnnotationでnilではなく、MGLAnnotationViewを返す

[code]
– (MGLAnnotationImage *)mapView:(MGLMapView *)mapView viewForAnnotation:(id <MGLAnnotation>)annotation {
// 100はannotationを区別するキー。テストなので固定
MGLAnnotationView *annotationView = [mapView dequeueReusableAnnotationViewWithIdentifier:@"100"];
if (!annotationView) {
annotationView = [[MGLAnnotationView alloc] initWithReuseIdentifier:@"100"];
annotationView.frame = CGRectMake(0, 0, 30, 30);
annotationView.layer.cornerRadius = annotationView.frame.size.width / 2;
annotationView.layer.borderColor = [UIColor whiteColor].CGColor;
annotationView.layer.borderWidth = 4.0;
annotationView.backgroundColor = [UIColor colorWithRed:0.03 green:0.80 blue:0.69 alpha:1.0];
}

return annotationView;
}
[/code]

MGLAnnotationViewを選択するとdidSelectAnnotationViewイベントが発生する

[code]
– (void)mapView:(MGLMapView *)mapView didSelectAnnotationView:(MGLAnnotationView *)annotationView {
NSLog(@"didSelectAnnotationView");
}
[/code]

Annotationに画像を表示

viewForAnnotationではnilを返すように戻し、imageForAnnotationでMGLAnnotationImageを返すように変更

[code]
– (MGLAnnotationImage *)mapView:(MGLMapView *)mapView viewForAnnotation:(id <MGLAnnotation>)annotation {
return nil;
}

– (MGLAnnotationImage *)mapView:(MGLMapView *)mapView imageForAnnotation:(id <MGLAnnotation>)annotation {

MGLAnnotationImage *annotationImage = [mapView dequeueReusableAnnotationImageWithIdentifier:@"100"];
if (!annotationImage) {
UIImage *image = [UIImage imageNamed:@"place8.png"];
image = [image imageWithAlignmentRectInsets:UIEdgeInsetsMake(0, 0, image.size.height/2, 0)];
annotationImage = [MGLAnnotationImage annotationImageWithImage:image reuseIdentifier:@"100"];
}

return annotationImage;
}
[/code]

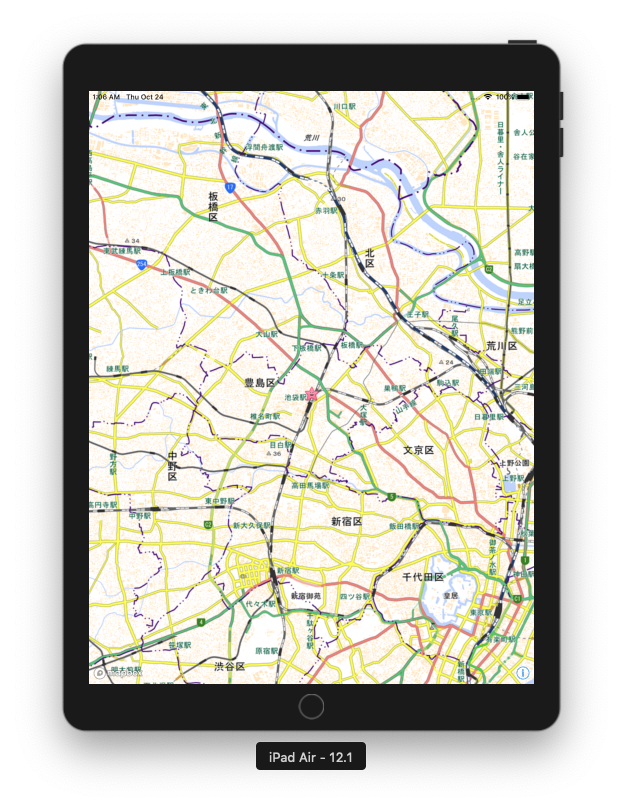

背景を国土地理院のタイル（ラスタ）に変更

baseman.jsonを作成（ファイル名は任意）

このファイルの内容はmapbox-gl-native for ios で地理院地図を表示してみるのそのまんまです

[code]
{
"version": 8,
"name": "Raster Tiles",
"sources": {
"gsiStd": {
"type": "raster",
"tiles": [
"http://cyberjapandata.gsi.go.jp/xyz/std/{z}/{x}/{y}.png"
],
"tileSize": 256
}
},
"layers": [{
"id": "gsiStd",
"type": "raster",
"source": "gsiStd",
"paint": {
"raster-fade-duration": 100
}
}]
}
[/code]

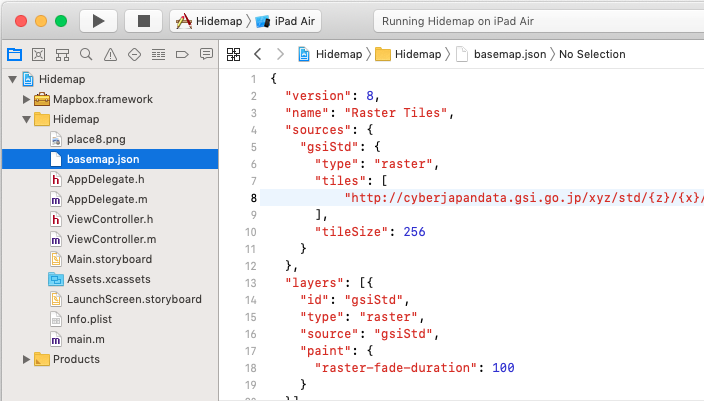

baseman.jsonをプロジェクトに追加

MGLMapViewのコンストラクタに渡すstyleURLを変更

[code]
– (void)viewDidLoad {
[super viewDidLoad];
NSURL *url = [[NSBundle mainBundle] URLForResource:@"basemap" withExtension:@"json"];
self.mapView = [[MGLMapView alloc] initWithFrame:self.view.bounds styleURL:url];
self.mapView.autoresizingMask = UIViewAutoresizingFlexibleWidth | UIViewAutoresizingFlexibleHeight;
[self.mapView setCenterCoordinate:CLLocationCoordinate2DMake(35.73353,139.712118)
zoomLevel:12
animated:NO];
self.mapView.delegate = self;
[self.view addSubview:self.mapView];

以下省略
}
[/code]
